1 Overview
1.1 Purpose

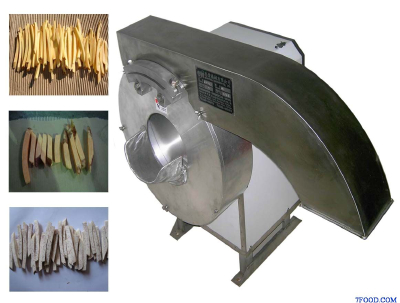

This applies to potatoes cut into strips or slices of hard vegetables, vegetable processing industry produced fresh vegetables and dehydrated vegetables ideal processing equipment, it is the ideal machine for the fast food industry processing fries.
1.2 Features
The machine uses the guide trough rotating dial on the feed tray; knife skewed distribution, arcuate oblique edge sword cutting. Section having a good quality, high efficiency vegetable, easy operation and low energy consumption. Vegetable contact parts are made of aluminum alloy and stainless steel, food processing machinery in line with hygiene standards.
2 Structure and working principle
2.1 The main structure
Main frame, housing, dial reel, cutter, transmission parts, the material cover and other components.
Works 2.2
Work potato material into the hopper by the inverted trough rotary dial on the reel to guide the material along the wall of the housing is rotated, attached to the housing wall cutter vegetables cut into strips, cut from the fries cover material out.
3 Technical Data
a) production capacity: 1000kg / h (calculated according to 10mm)
b) cutting Size: 5mm.8mm.10mm (slightly curved). (According to a specification of each machine configuration, such as the user need other specifications can be purchased knife, gaskets, dial trays)
c) Speed Dial material: 178r / min
d) Motor power: 1.1kw-4 or 0.75kw-4
e) Rated voltage: 220v ~ or 380v ~ 3 ~
f) Rated Frequency: 50Hz
g) Waterproof grade: IPX1
h) V-belt: A737-2 A1000-2
4 dimensions, weight
4.1 Dimensions: 1070 * 685 * 1030mm
4.2 Weight: 120kg
