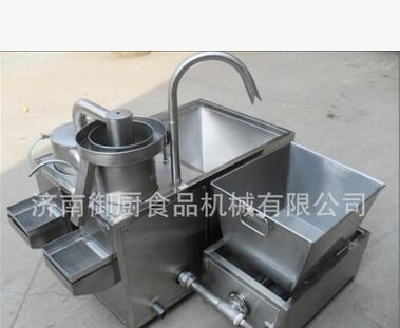

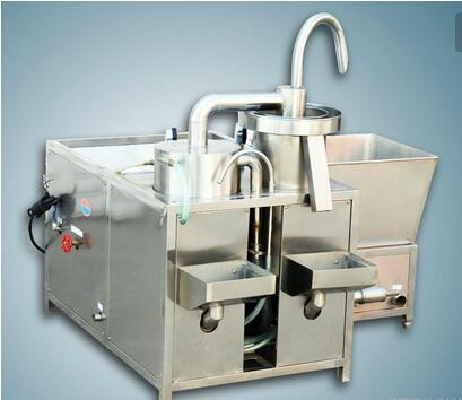

Rice washing machine

1 Overview

   YXM-500-type rice washing machine is my factory according to market feedback information to develop new products, rice and other food particles panning rational equipment, mainly for the cafeteria, snack bar, food processing plants and other enterprises of rice and other food particles panning.

1.2 Features

Machine design scientific and rational, compact, fast continuous panning in the washing process, rice and stones, mud, chaff, and other debris can be a time of rapid Michong exclude from different outlet respectively. With high efficiency, easy operation, labor, effort, water is a distinctive feature; washing machine is not only rice, but also panning red bean, mung beans and other granular food ideal equipment.

2 Structure and working principle

2.1 The main structure

2.1.1 The machine main frame, sand separator, floats separator, rice bucket, water and pipe combination and other structures.

2.1.2 The machine uses high-quality stainless steel, stainless steel to ensure long-term, no-loss, non-toxic, harmless, in line with food hygiene requirements.

Works 2.2

  First, after turning on the water, turn on the power, adjust the row of stone pressure, the rice into the rice bucket filled through a combination of separator, the water under the action of different pressures, stones, mud and other hard impurities from the sand separator withdrawn; bran, Michong other debris discharged from the floating material separator; wash the rice falls through the meter tube inscribed rice basket, complete rice washing work. (continuously working)

3 Technical Data

a) washing capacity: 500kg / h

b) row of stone rate: ≥95%

c) pipeline pumps: 25SG6.5-30 Q = 6.5 Li Fangmi / h Head = 30m N = 1.5kw

d) Rated voltage: 380V 3 ~

e) Rated frequency: 50Hz

f) working pressure: 0.23-0.28MPa

g) Paishi pressure: 0.08-0.10 MPa

h) Paishi tube diameter: ≥11mm

i) water consumption: 0.0065 m3 / kg

j) Waterproof grade: IPX1

4 dimensions, weight

4.1 Dimensions: 1100 * 1000 * 820mm

4.2 Weight: 88kg
