Ginger dicer

Ginger dicer

  • Min.Order Quantity: 10 Sets
  • Supply Ability: 1000 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-10-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  Yuchu Food Machinery
  • Model Number:  CHD100
  • Weight: 100.000 kg

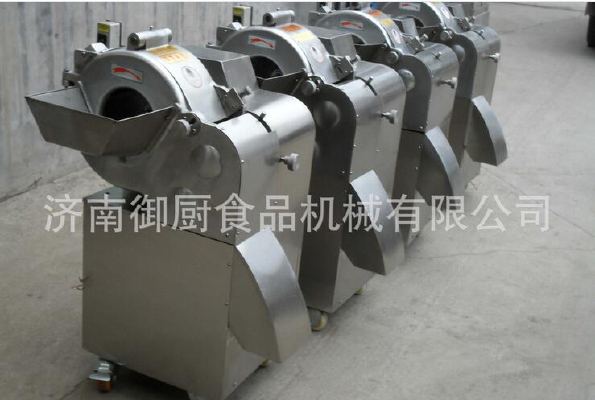

Overview CHD100 type dicing machine for dehydrated vegetables, frozen vegetables, pickles processing plants and food processing industry a variety of root, stem vegetables into cubes and rectangular shape. The machine uses a composite tool, a shape, a regular shape, smooth section, forming rate, by the export unit of favor. The machine advanced design, easy operation, low energy consumption, high efficiency, made of stainless steel, corrosion resistance, appearance, meet the health standards.

2 Structure and working principle

① main structure of the machine base, casing, dial, vertical knife, wire cutter body, cross-cutting knife body, powertrain and electrical control system. The machine base, casing, hopper and the main components are made of stainless steel to ensure long-term work does not rust, non-toxic and other characteristics.

② The principle of work is cut dial drive high-speed rotating object, use objects centrifugal force, by means of vertical knife cut object cut sheet, then cut through the disc knife cut into strips and cut the material into transverse cutting edge, cube or rectangular cross-section of the cutting knife cut into desired.

3. The main technical parameters

3.1 Production capacity: 1000kg / h (when cutting 15mm cube)

3.2 vegetable Specifications: cutting 3,4,5,6,7,8,9,10,12,15,20 mm cube or cuboid, other sizes can also be customized according to the requirements of the tool.

3.3 Motor type and power: Y802-4,380V, 0.75kW

3.4 Dimensions: 560 * 600 * 1040mm (L * W * H),

3.5 Weight: 100kg


  • Place of Origin:  China
  • Brand Name:  Yuchu Food Machinery
  • Model Number:  CHD100
  • Weight: 100.000 kg
